On This Day in 1962, NASA Launched and Destroyed Mariner 1

NASA // Public Domain
NASA // Public Domain

On July 22, 1962, NASA launched the Mariner 1 probe, which was intended to fly by Venus and collect data on its temperature and atmosphere. It was intended to be the first interplanetary craft—the first time humans had sent a space probe to another world. Unfortunately, NASA aborted the mission 293 seconds after launch, destroying the probe in the Atlantic. What happened?

First off, a bit of history. Mariner 1 was based on the pre-existing Block 1 craft used in the Ranger program, which was aimed at gathering data on our moon. Those early Ranger probes didn't do so well—both Ranger 1 and Ranger 2 suffered early failures in orbit. Mariner 1 was a modified version of the Ranger design, intended for a much longer mission to another planet. It lacked a camera, but had various radiometers, a cosmic dust detector, and a plasma spectrometer—it would be capable of gathering data about Venus, but not pictures per se.

The two previous Ranger missions had used basically the same launch system, so it was reasonably well-tested. The Ranger probes had made it into orbit, but had been unable to stabilize themselves after that.

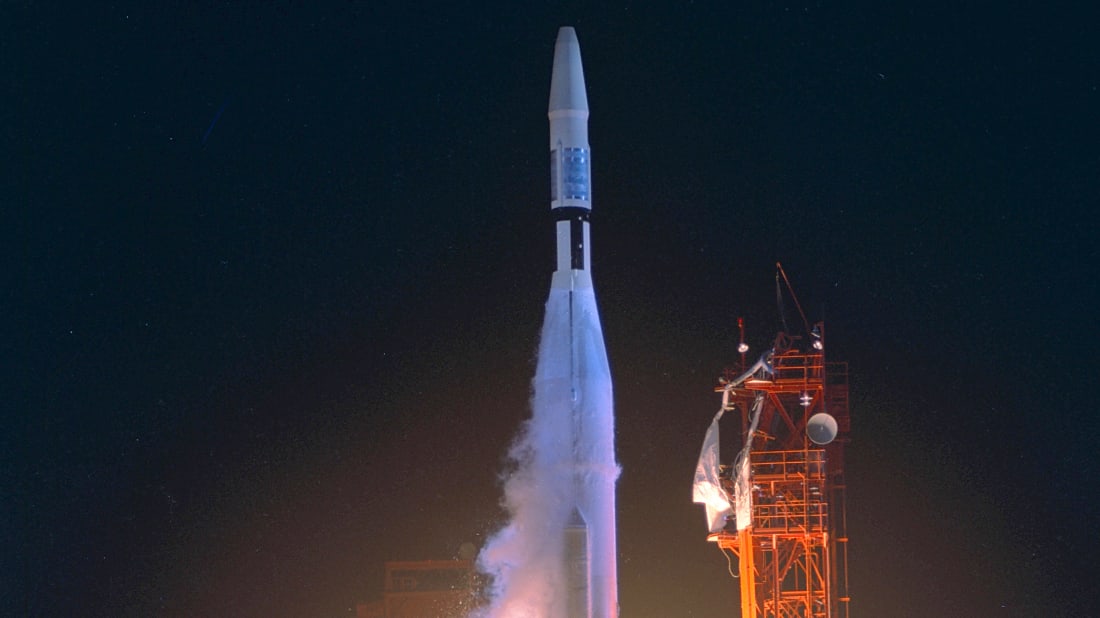

Mariner 1 launched on the evening of July 22, 1963. Its Atlas-Agena rocket was aided by two radar systems, designed to track data on velocity (the "Rate System") and distance/angle (the "Track System") and send it to ground-based computers. By combining that data, the computers at Cape Canaveral helped the rocket maintain a trajectory that, when separated, would lead Mariner 1 to Venus.

Part of the problem involved in handling two separate radars was that there was a slight delay—43 milliseconds—between the two radars' data reports. That wasn't a problem by itself. The Cape computer simply had to correct for that difference. But in that correction process, a problem was hiding—a problem that hadn't appeared in either of the previous Ranger launches.

To correct the timing of the data from the Rate System—the radar responsible for measuring velocity of the rocket—the ground computer ran data through a formula. Unfortunately, when that formula had been input into the computer, a crucial element called an overbar was omitted. The overbar indicated that several values in the formula belonged together; leaving it out meant that a slightly different calculation would be made. But that wasn't a problem by itself.

The fate of Mariner 1 was sealed when the Rate System hardware failed on launch. This should not have been a fatal blow, as the Track System was still working, and Ground Control should have been able to compensate. But because that overbar was missing, calculations on the incoming radar data went wonky. The computer incorrectly began compensating for normal movement of the spacecraft, using slightly incorrect math. The craft was moving as normal, but the formula for analyzing that data had a typo—so it began telling Mariner 1 to adjust its trajectory. It was fixing a problem that didn't exist, all because a few symbols in a formula weren't grouped together properly.

Mariner 1's rocket did as it was told, altering its trajectory based on faulty computer instructions. Looking on in horror, the Range Safety Officer at the Cape saw that the Atlas rocket was now headed for a crash-landing, potentially either in shipping lanes or inhabited areas of Earth. It was 293 seconds after launch, and the rocket was about to separate from the probe.

With just 6 seconds remaining before the Mariner 1 probe was scheduled to separate (and ground control would be lost), that officer made the right call—he sent the destruct command, ditching Mariner I in an unpopulated area of the Atlantic.

The incident was one of many early space launch failures, but what made it so notable was the frenzy of reporting about it, mostly centered on what writer Arthur C. Clarke called "the most expensive hyphen in history." The New York Times incorrectly reported that the overbar was a "hyphen" (a reasonable mistake, given that they are both printed horizontal lines) but correctly reported that this programming error, when coupled with the hardware failure of the Rate System, caused the failure. The bug was identified and fixed rapidly, though the failed launch cost $18,500,000 in 1962 dollars—north of $150 million today.

Fortunately for NASA, Mariner 2 was waiting in the wings. An identical craft, it launched just five weeks later on August 27, 1962. And, without the bug and the radar hardware failure, it worked as planned, reaching Venus and becoming the first interplanetary spacecraft in history. It returned valuable data about the temperature and atmosphere of Venus, as well as recording solar wind and interplanetary dust data along the way. There would be 10 Mariner missions in all [PDF], with Mariner 1, 3, and 8 suffering losses during launch.

For further reading, consult this Ars Technica discussion, which includes valuable quotes from Paul E. Ceruzzi's book Beyond The Limits—Flight Enters the Computer Age.

Could an Astronaut Steal a Rocket and Lift Off, Without Mission Control?

iStock
iStock

C Stuart Hardwick:

Not with any rocket that has ever thus far carried a person into orbit from Earth, no. Large rockets are complex, their launch facilities are complex, their trajectories are complex, and the production of their propellants is complex.

Let me give you one simple example:

  • Let’s say astro-Sally is the last woman on Earth, and is fully qualified to fly the Saturn-V.
  • Further, let’s say the Rapture (which as I understand it, is some sort of hip-hop induced global catastrophe that liquefies all the people) has left a Saturn-V sitting on the pad, raring to go.
  • Further, let’s grant that, given enough time, astro-Sally can locate sufficient documentation to operate the several dozen controls needed to pump the first stage propellant tanks full of kerosene.
  • Now what? Oxidizer, right? Wrong. First, she has to attend to the batteries, oxygen, hydrogen, and helium pressurant tanks in her spacecraft, otherwise it’s going to be a short, final flight. And she’ll need to fill the hypergolics for the spacecraft propulsion and maneuvering systems. If she screws that up, the rocket will explode with her crawling on it. If she gets a single drop of either of these on her skin or in her lungs, she’ll die.
  • But okay, maybe all the hypergolics were already loaded (not safe, but possible) and assume she manages to get the LOX, H2, and HE tanks ready without going Hindenburg all over the Cape.
  • And…let’s just say Hermione Granger comes back from the Rapture to work that obscure spell, propellantus preparum.
  • All set, right? Well, no. See, before any large rocket can lift off, the water quench system must be in operation. Lift off without it, and the sound pressure generated by the engines will bounce off the pad, cave in the first stage, and cause 36 stories of rocket to go “boom.”
  • So she searches the blockhouse and figures out how to turn on the water quench system, then hops in the director’s Tesla (why not?) and speeds out to the pad, jumps in the lift, starts up the gantry—and the water quench system runs out of water ... Where’d she think that water comes from? Fairies? No, it comes from a water tower—loaded with an ample supply for a couple of launch attempts. Then it must be refilled.

Now imagine how much harder this would all be with the FBI on your tail.

Can a rocket be built that’s simple enough and automated enough to be susceptible to theft? Sure. Have we done so? Nope. The Soyuz is probably the closest—being highly derived from an ICBM designed to be “easy” to launch, but even it’s really not very close.

This post originally appeared on Quora. Click here to view.

The Science Behind Why the Earth Isn't Flat

Earth as captured from near the lunar horizon by the Lunar Reconnaissance Orbiter in 2015.
Earth as captured from near the lunar horizon by the Lunar Reconnaissance Orbiter in 2015.
NASA

On March 24, 2018, flat-earther Mike Hughes set out prove that the Earth is shaped like a Frisbee. The plan: Strap himself to a homemade steam-powered rocket and launch 52 miles into sky above California’s Mojave Desert, where he'd see Earth's shape with his own eyes.

It didn't matter that astronauts like John Glenn and Neil Armstrong had been to space and verified that the Earth is round; Hughes didn't believe them. According to The Washington Post, Hughes thought they were "merely paid actors performing in front of a computer-generated image of a round globe."

The attempt, ultimately, was a flop. He fell back to Earth with minor injuries after reaching 1875 feet—not even as high as the tip of One World Trade Center. For the cost of his rocket stunt ($20,000), Hughes could have easily flown around the world on a commercial airliner at 35,000 feet.

Hughes isn't alone in his misguided belief: Remarkably, thousands of years after the ancient Greeks proved our planet is a sphere, the flat-Earth movement seems to be gaining momentum. "Theories" abound on YouTube, and the flat-Earth Facebook page has some 194,000 followers.

Of course, the Earth isn't flat. It's a sphere. There is zero doubt about this fact in the real, round world. To say the evidence is overwhelming is an understatement.

HOT SPINNING BODIES

Not every celestial body is a sphere, but round objects are common in the universe: In addition to Earth and all other known large planets, stars and bigger moons are also ball-shaped. These objects, and billions of others, have the same shape because of gravity, which pulls everything toward everything else. All of that pulling makes an object as compact as it can be, and nothing is more compact than a sphere. Say, for example, you have a sphere of modeling clay that is exactly 10 inches in diameter. No part of the mass is more than 5 inches from the center. That's not the case with any other shape—some part of the material will be more than 5 inches from the center of the mass. A sphere is the smallest option.

Today the Earth is mostly solid with a liquid outer core, but when the planet was forming, some 4.5 billion years ago, it was very hot and behaved like more like a fluid—and was subject to the squishing effects of gravity.

And yet, the Earth isn't a perfect sphere; it bulges slightly at the equator. "Over a long time-scale, the Earth acts like a highly viscous fluid," says Surendra Adhikari, a geophysicist at the Jet Propulsion Laboratory in Pasadena, California. The Earth has been spinning since it was formed, and "if you have a spinning fluid, it will bulge out due to centrifugal forces." You can see evidence for this at the equator, where the Earth's diameter is 7926 miles—27 miles larger than at the poles (7899 miles). The difference is tiny—just one-third of 1 percent.

THE SHADOW KNOWS

The ancient Greeks figured out that Earth was a sphere 2300 years ago by observing the planet's curved shadow during a lunar eclipse, when the Earth passes between the Sun and the Moon. Some flat-Earth believers claim the world is shaped like a disk, perhaps with a wall of ice along the outer rim. (Why no one has ever seen this supposed wall, let alone crashed into it, remains unexplained.) Wouldn't a disk-shaped Earth also cast a round shadow? Well, it would depend on the orientation of the disk. If sunlight just happened to hit the disk face-on, it would have a round shadow. But if light hit the disk edge-on, the shadow would be a thin, straight line. And if the light fell at an oblique angle, the shadow would be a football–shaped ellipse. We know the Earth is spinning, so it can't present one side toward the Sun time after time. What we observe during lunar eclipses is that the planet's shadow is always round, so its shape has to be spherical.

The ancient Greeks also knew Earth's size, which they determined using the Earth's shape. In the 2nd century BCE, a thinker named Eratosthenes read that on a certain day, the people of Syene, in southern Egypt, reported seeing the Sun directly overhead at noon. But in Alexandria, in northern Egypt, on that same day at the same time, Eratosthenes had observed the Sun being several degrees away from overhead. If the Earth were flat, that would be impossible: The Sun would have to be the same height in the sky for observers everywhere, at each moment in time. By measuring the size of this angle, and knowing the distance between the two cities, Eratosthenes was able to calculate the Earth's diameter, coming up with a value within about 15 percent of the modern figure.

And when Columbus set sail from Spain in 1492, the question wasn't "Would he fall off the edge of the world?"—educated people knew the Earth was round—but rather, how long a westward voyage from Europe to Asia would take, and whether any new continents might be found along the way. During the Age of Exploration, European sailors noticed that, as they sailed south, "new" constellations came into view—stars that could never be seen from their home latitudes. If the world were flat, the same constellations would be visible from everywhere on the Earth's surface.

Finally, in 1522, Ferdinand Magellan's crew became the first people to circle the globe. Like Columbus, Magellan also set off from Spain, in 1519, heading west—and kept generally going west for the next three years. The expedition wound up back at the starting point (though without Magellan, who was killed during a battle in the Philippines). And speaking of ships and seafaring: One only needs to watch a tall ship sailing away from port to see that its hull disappears before the top of its mast. That happens because the ship is traveling along a curved surface; if the Earth were flat, the ship would just appear smaller and smaller, without any part of it slipping below the horizon.

THE EVIDENCE IS ALL AROUND (AND ALL ROUND)

But you don't need a ship to verify the Earth's shape. When the Sun is rising in, say, Moscow, it's setting in Los Angeles; when it's the middle of the night in New Delhi, the Sun is shining high in the sky in Chicago. These differences occur because the globe is constantly spinning, completing one revolution per day. If the Earth were flat, it would be daytime everywhere at once, followed by nighttime everywhere at once.

You also experience the Earth's roundness every time you take a long-distance flight. Jetliners fly along the shortest path between any two cities. "We use flight paths that are calculated on the basis of the Earth being round," Adhikari says. Imagine a flight from New York to Sydney: It would typically head northwest, toward Alaska, then southwest toward Australia. On the map provided in your airline's in-flight magazine, that might look like a peculiar path. But wrap a piece of string around a globe, and you'll see that it’s the shortest possible route.

"If the Earth were flat," Adhikari says, "the trajectory would be completely different." How different depends on which way the globe is sliced into a flattened map, but if it looked like it does on a Mercator-projection map, it might head east and pass over Africa.

Engineers and architects also take the Earth's curvature into account when building large structures. A good example is the towers that support long suspension bridges such as the Verrazano Narrows bridge in New York City. Its towers are slightly out of parallel with each other, the tops being more than 1.5 inches further apart than their bases. If the Earth were flat, the bottom of the towers would be separated by the exact same distance as the top of the towers; the planet's curvature forces the tops of the towers apart.

And for the last half-century, we've had eyewitness and photographic proof of the Earth's shape. In December 1968, the crew of Apollo 8 left Earth for the Moon. When they looked out of the Command Module windows, they saw a blue-and-white marble suspended against the blackness of space. On Christmas Eve, lunar module pilot William Anders snapped the famous "Earthrise" photograph. It gave us an awe-inspiring perspective of our round planet that was unprecedented in human history—but it wasn't a surprise to anyone.
